Steel Fabrication Projects Across Ireland

A sample of what has gone out the gate: structural frames, hangars and sheds, floor beams, steel framed openings and one off fabrication. If you want to see something closer to your own job, ring us and we will point you at one.

Get a Quote

Filter projects

Inside a completed aircraft hangar with blue painted steel portal frame, rooflights and a full width roller door

Sheds

Aircraft hangar, steel frame and cladding

Clear span hangar with a painted portal frame, rooflights and a full width roller shutter opening onto the apron.

See the job
Red oxide painted steel portal frame with galvanised purlins spanning a new commercial building on blockwork walls

Structural steel

Commercial portal frame and purlins

Roof steel and purlins set out and erected over new blockwork while the building was still under construction.

See the job
Galvanised steel floor beams bolted onto red painted supports over blockwork walls on a new build house

Structural steel

Galvanised floor beams, new build house

First floor steel for a new build, galvanised for a long life and sat on prepared bearings.

See the job
Grey painted steel frame extension erected alongside an existing industrial building with bracing and temporary props

Structural steel

Industrial extension frame

New frame tied into an existing industrial building, erected in bays around a live yard.

See the job
Red painted steel goal post frame forming a new door opening in a warehouse block wall

Openings & alterations

Warehouse door openings

New openings cut through block walls in a working warehouse, framed in steel and fitted around operations.

See the job
Steel beams and columns installed on adjustable props inside a stripped out retail unit

Openings & alterations

Retail fit out, beams and propping

Load bearing walls removed and replaced with steel inside a stripped out unit, all on props until the steel took the load.

See the job
Red oxide painted steel frame forming a goods lift shaft inside an existing building

Fabrication

Goods lift shaft frame

Welded steel shaft frame built inside an existing building to take a goods lift and its guides.

See the job

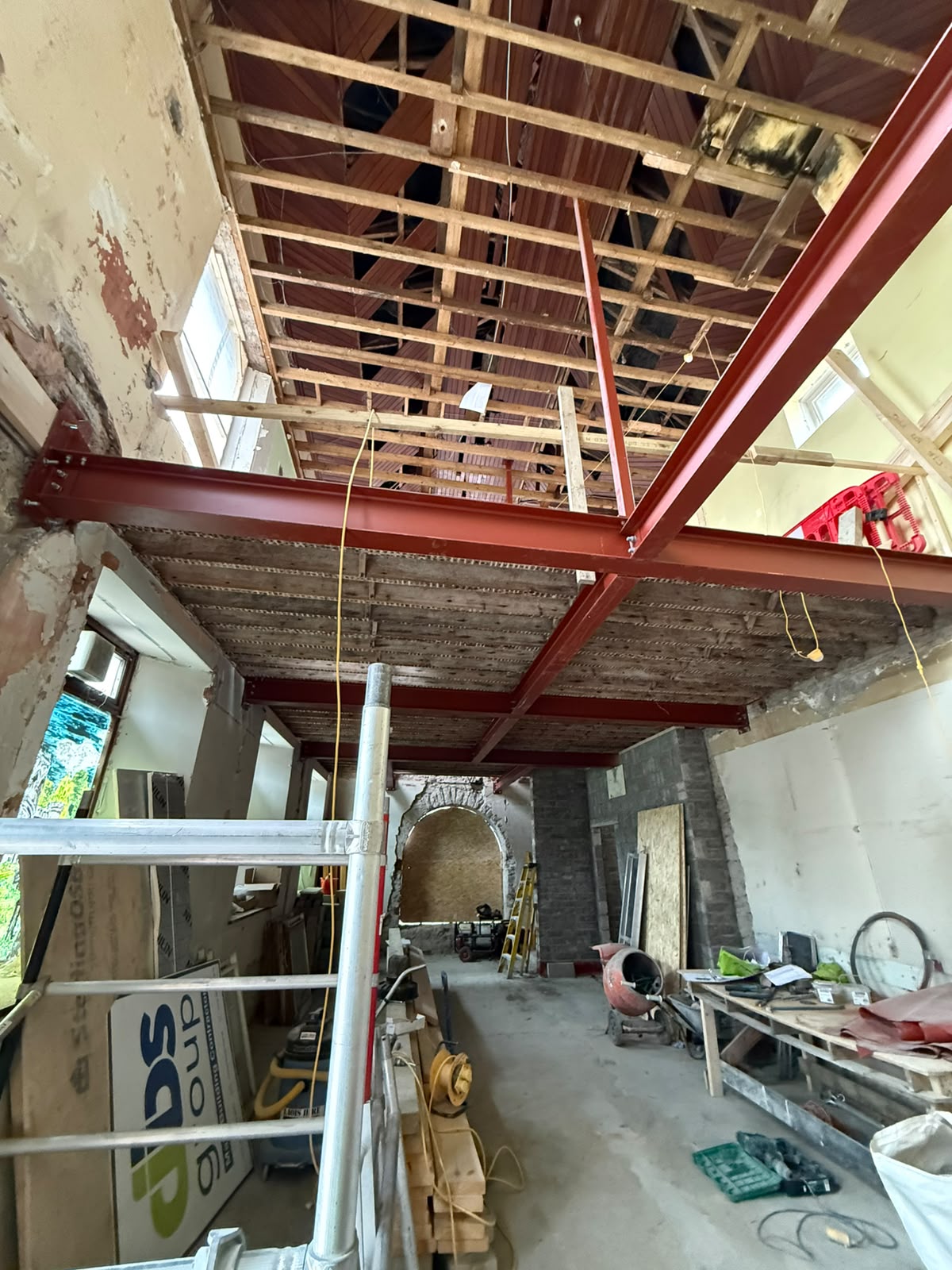

Red oxide painted steel beams installed at ceiling and roof level inside a period house being renovated

Openings & alterations

Structural beams, period house renovation

Beams threaded into an old house to carry floors and roof loads while walls and chimney breasts were opened up.

See the job

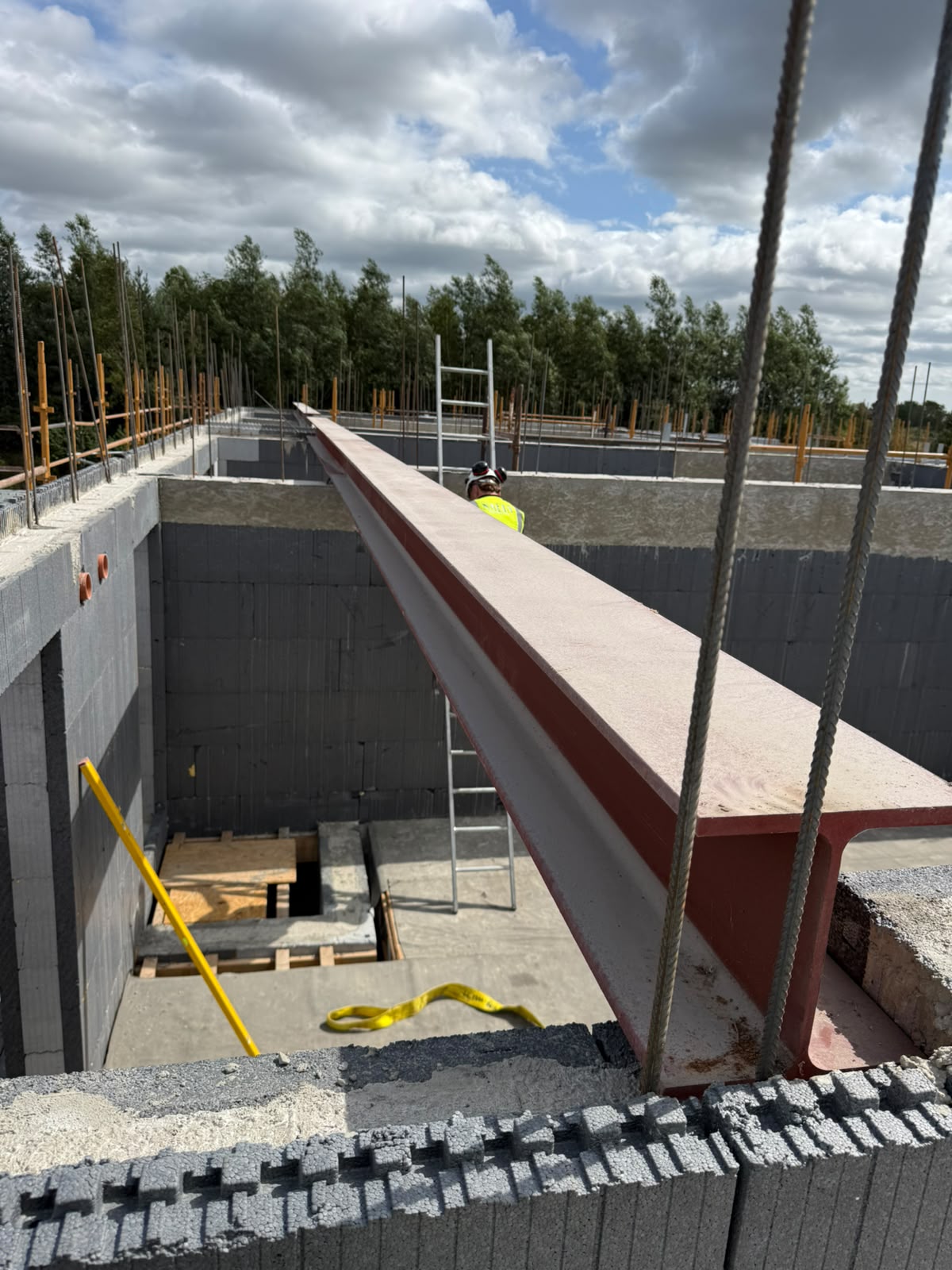

Long red oxide painted steel beam being craned into position across blockwork walls on a new build site

Structural steel

Long span floor beam, new build

Single long span beam fabricated, delivered and craned across the blockwork to carry the ground floor.

See the job
Stacked galvanised steel fabricated units with yellow painted hoops on pallets outside the Nally Engineering workshop

Fabrication

Galvanised fabricated units, batch production

Repeat batch of welded and galvanised steel units, made to drawing and stacked ready for delivery.

See the job

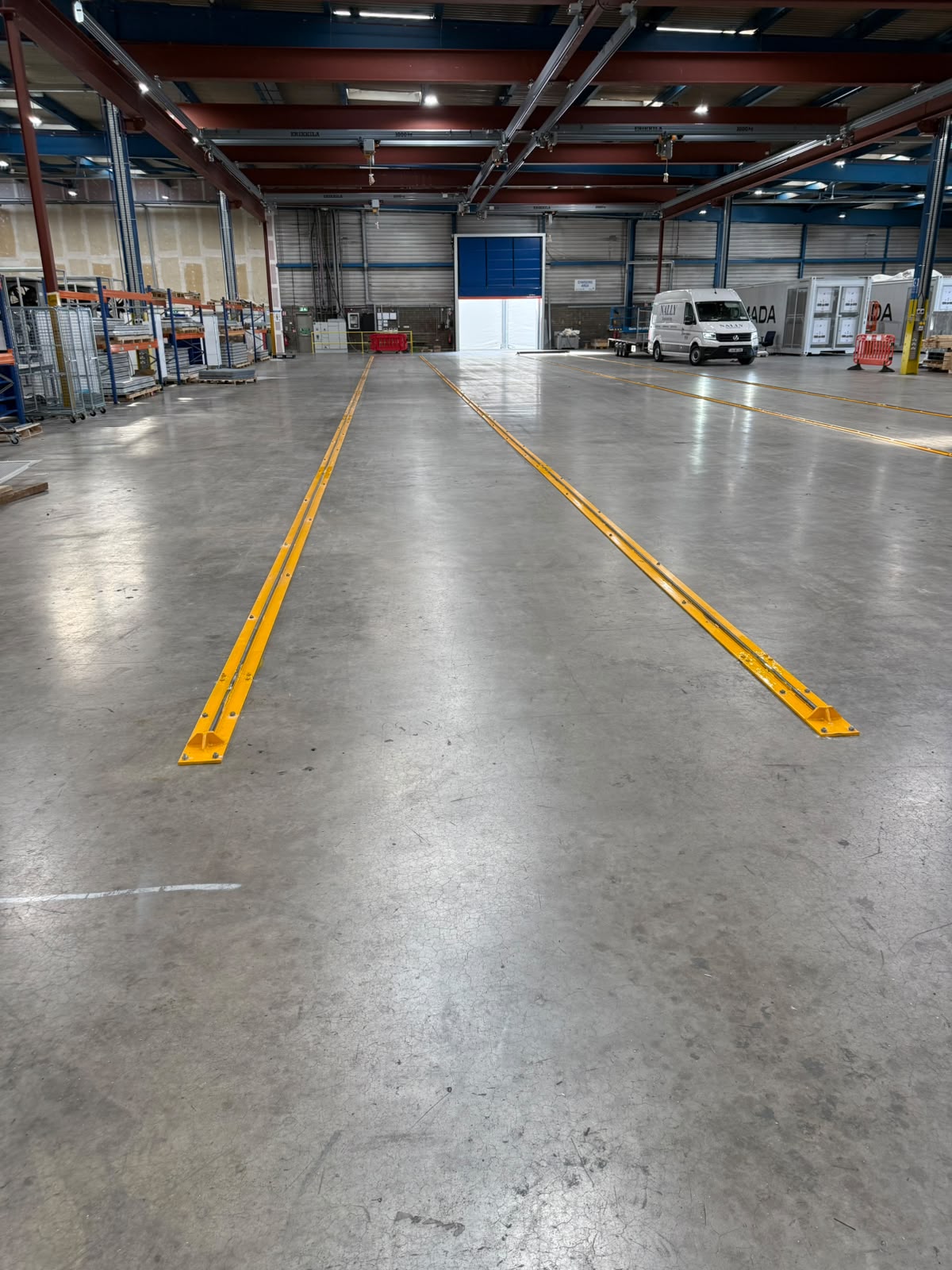

Long yellow painted steel guide rails bolted into a factory floor running towards a loading door

Fabrication

Factory floor guide rails and trackway

Long runs of yellow painted steel guide rail fabricated and bolted into a working production hall.

See the job

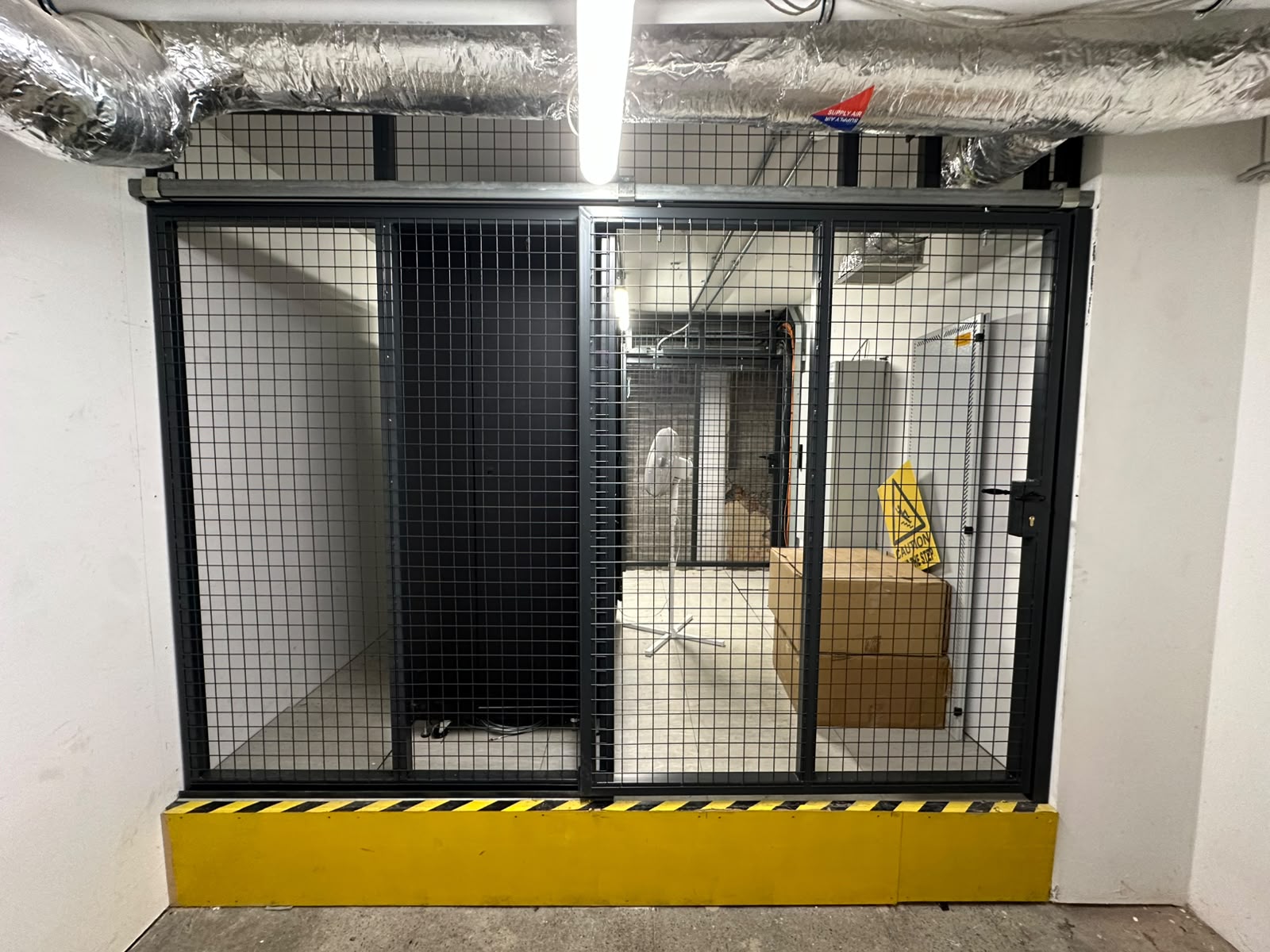

Dark grey welded mesh security cage with sliding gate enclosing a plant room, with yellow kerb protection at floor level

Fabrication

Mesh security cage and gate

Welded mesh enclosure with a sliding gate and lock, built to secure plant and storage inside a commercial building.

See the job
Dark grey external steel access platform on columns with a bolted staircase and open mesh treads against a rendered building

Stairs & platforms

External steel stairs and access platform

Bolted steel platform and staircase giving external first floor access, on its own columns and pad foundations.

See the job
Inside a completed steel shed with grey portal frame, red painted side rails, insulated sheeting and roof lights

Sheds

Steel shed frame, sheeted and rooflit

Compact steel shed with a painted frame, side rails, insulated sheeting and rooflights over a new concrete floor.

See the job
Red oxide painted steel goal post frame installed around a glazed double height office entrance during alterations

Openings & alterations

Office entrance opening, steel goal post

Goal post frame installed around a glazed entrance in a building that stayed open to staff and visitors throughout.

See the job
Wide galvanised steel entrance gates clad in dark green profiled sheeting between concrete piers

Gates & railings

Clad galvanised entrance gates

Wide galvanised gate frames clad in profiled sheeting for privacy, hung off concrete piers on a farm entrance.

See the job

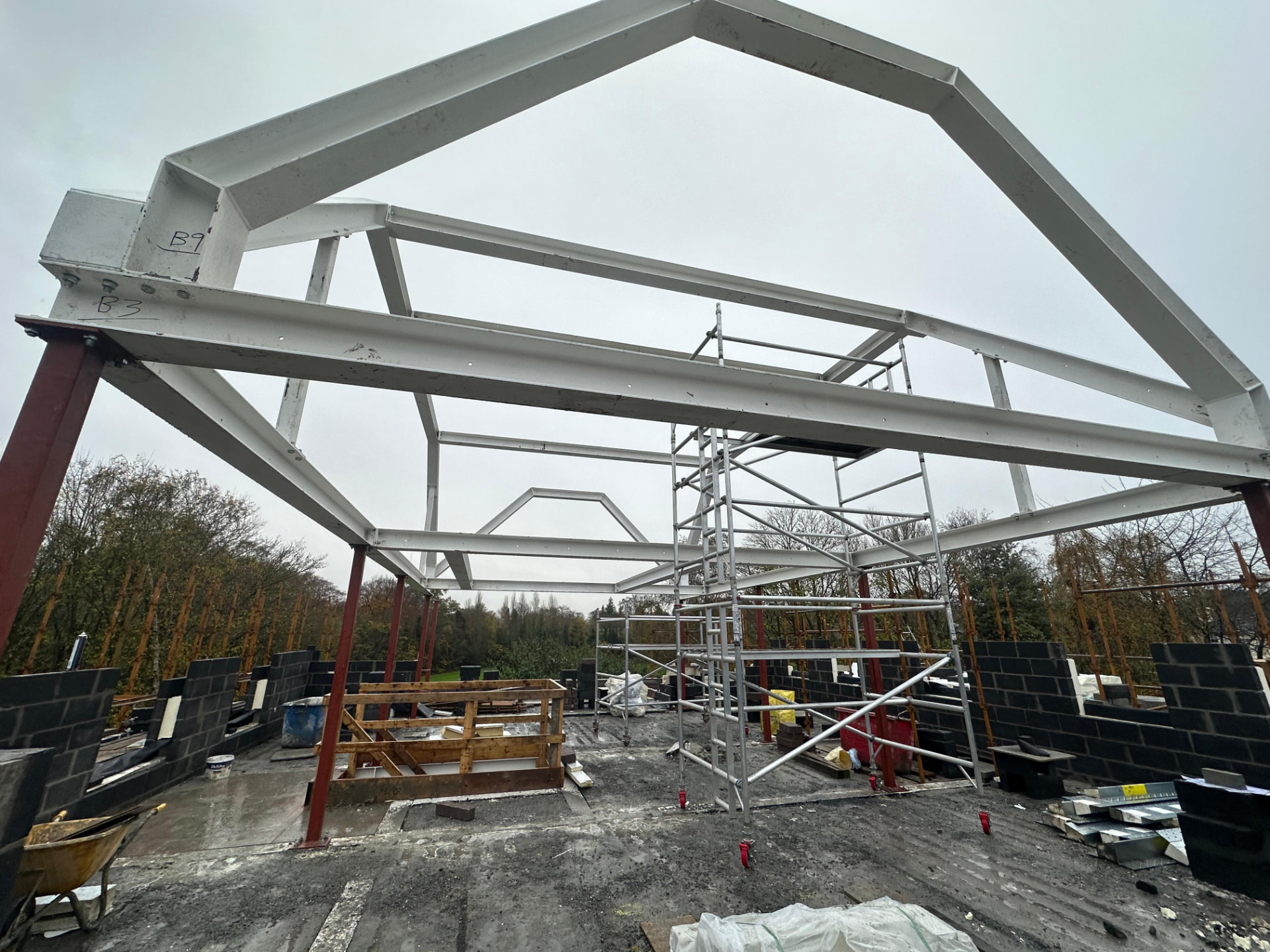

White painted apex steel portal frame with rafters and ties erected on red columns above new blockwork walls

Structural steel

Apex portal frame over blockwork

Painted apex frame with rafters, ties and columns, marked up in the workshop and erected in one visit.

See the job
Red oxide painted steel columns set on pad foundations with beams laid out ready for erection on a new build site

Structural steel

New build steel frame, columns and beams

Columns set out on pads with beams and a goal post frame delivered in sequence for a large new build extension.

See the job

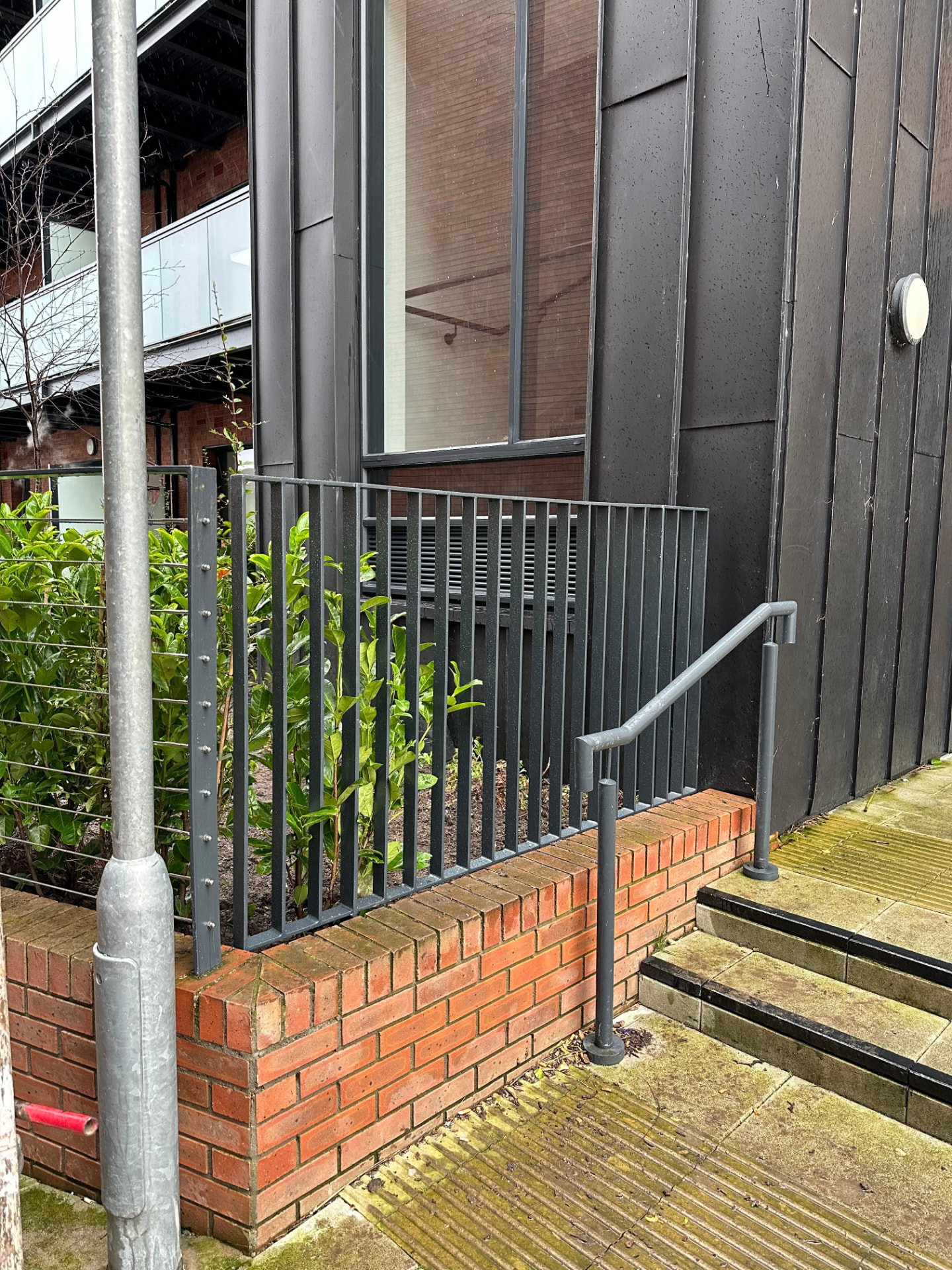

Dark grey vertical bar steel railings and a tubular handrail beside brick steps at an apartment entrance

Gates & railings

Apartment entrance railings and handrail

Vertical bar railings and a tubular handrail made to suit a stepped entrance and finished in dark grey.

See the job
Run of dark grey vertical bar boundary railings on a low stone plinth along a footpath beside a brick apartment building

Gates & railings

Street boundary railings

A long run of vertical bar railings on a stone plinth, stepped to follow the fall of the footpath.

See the job

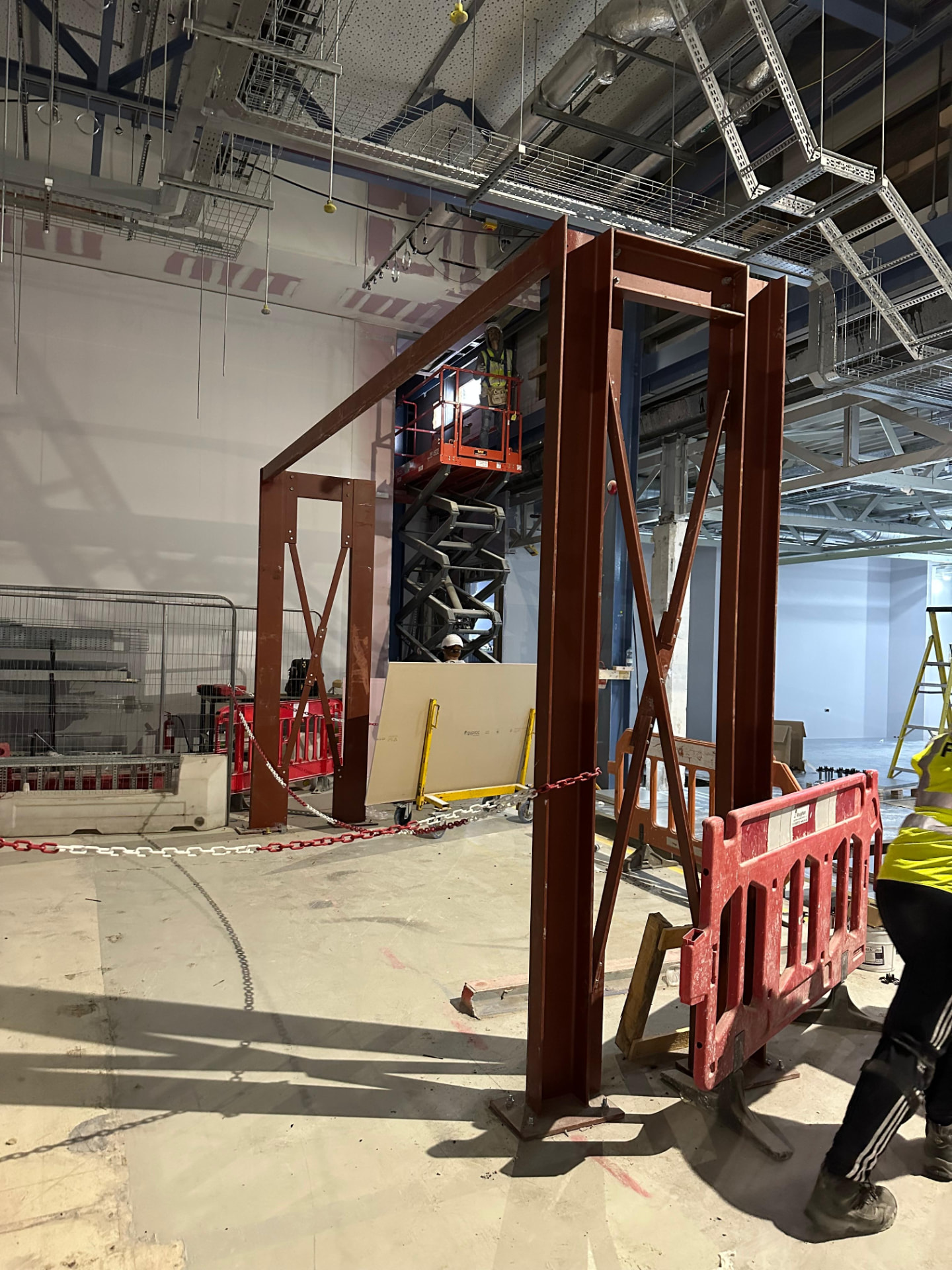

Red oxide painted steel goal post frame with cross bracing standing inside a commercial fit out with services overhead

Openings & alterations

Braced goal post frame, commercial fit out

Braced goal post frame stood inside a live commercial fit out, taken in through the building in sections.

See the job

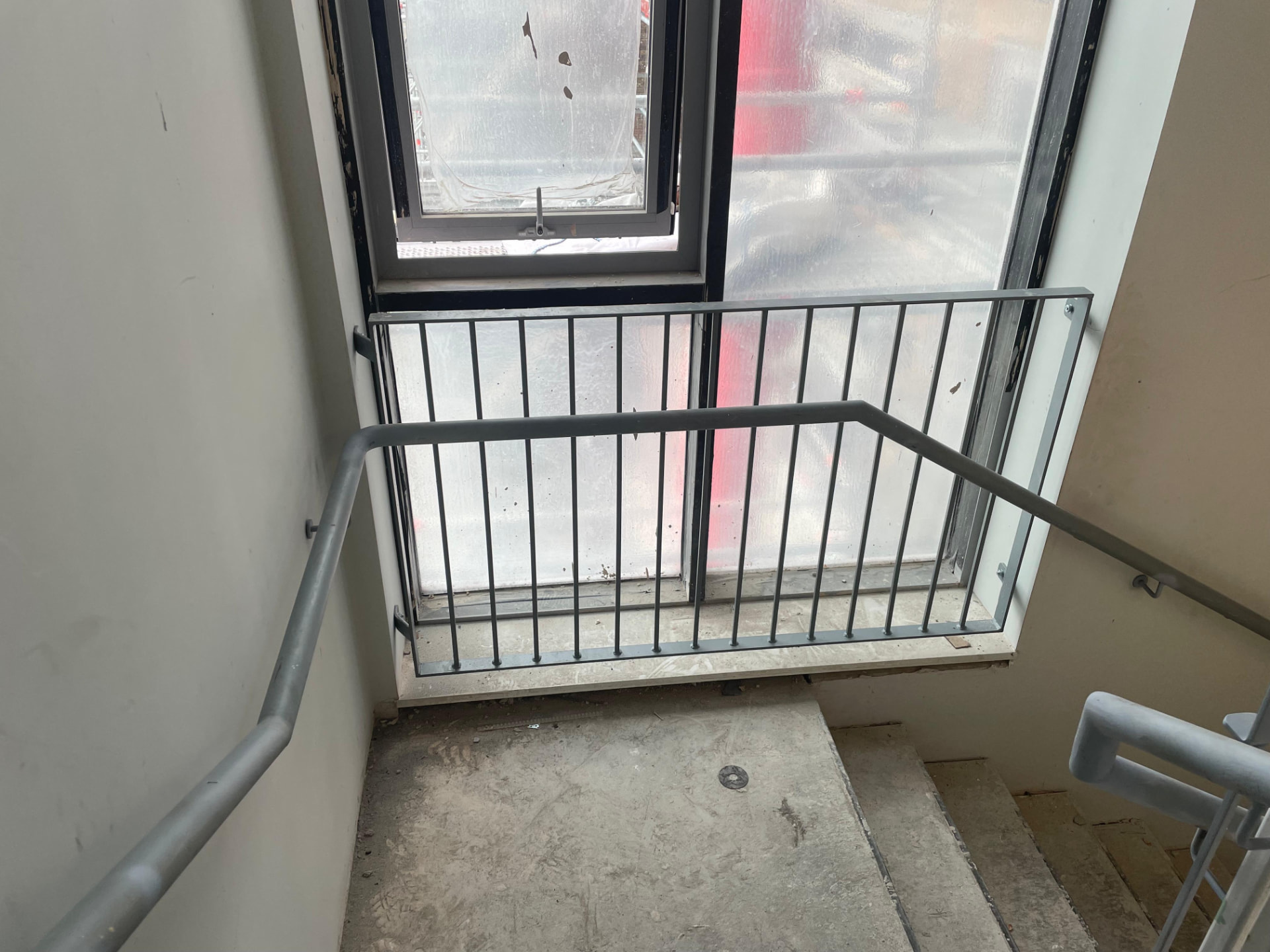

Grey steel balustrade with vertical bars and tubular wall handrails to a concrete stair landing

Stairs & platforms

Stairwell balustrade and handrails

Balustrade and wall mounted tubular handrails to a concrete stair core, made to suit each flight.

See the job
Frameless glass balustrade with a metal capping rail installed to an apartment balcony behind scaffolding

Gates & railings

Balcony glass balustrades

Glass balustrades with capping rails installed to apartment balconies while the scaffold was still up.

See the job
Long grey steel balustrade with posts and rails running along the edge of a roof terrace

Stairs & platforms

Roof terrace balustrade

A long run of posts and rails along a roof terrace edge, fixed back without breaking the roof finish.

See the job
Bright yellow tubular safety handrail with base plated posts running along a narrow service walkway

Stairs & platforms

Yellow safety handrail to service walkway

Tubular safety handrail along a narrow service walkway, base plated to the concrete and finished in safety yellow.

See the job

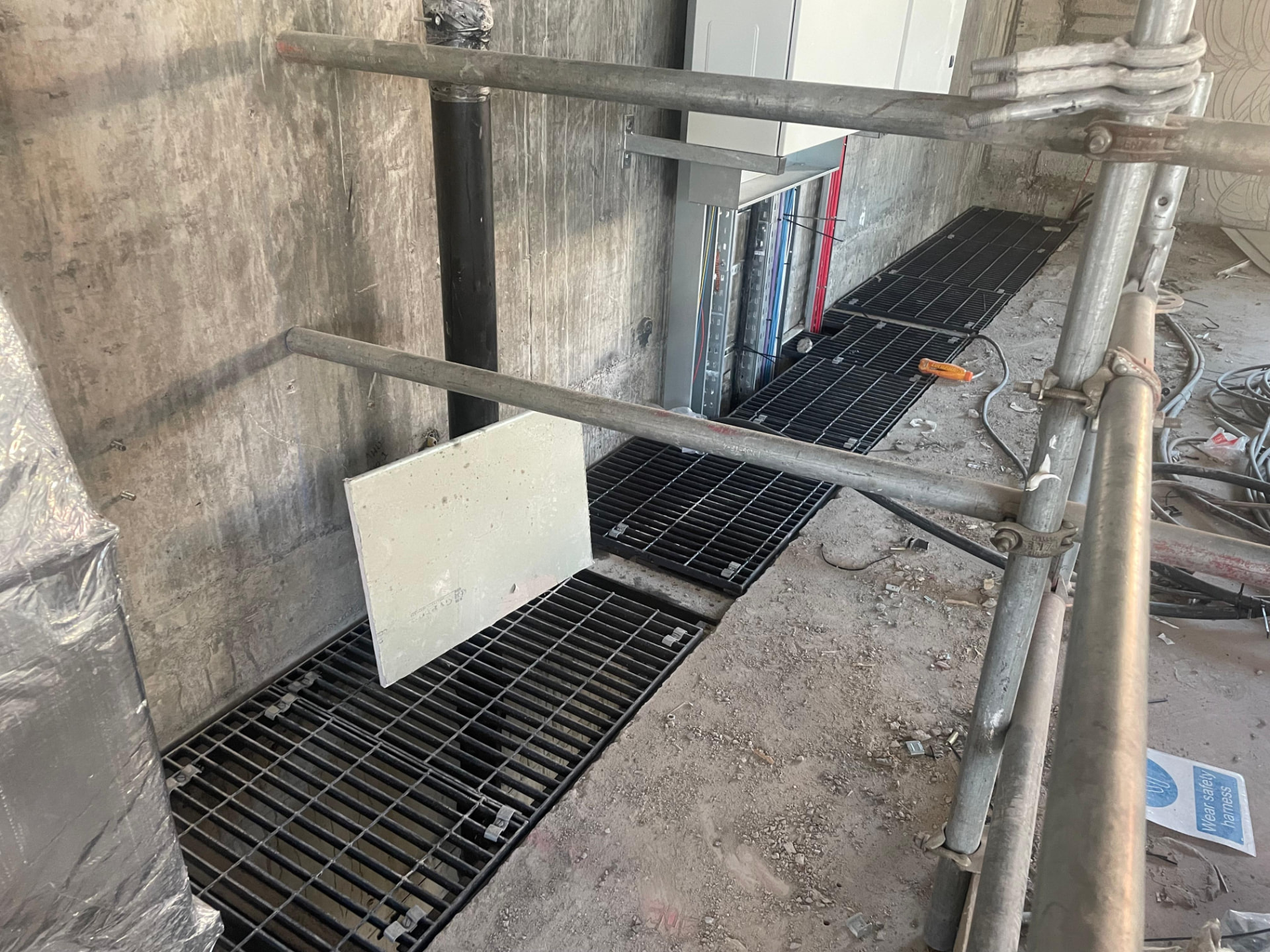

Black open mesh grating panels set into a concrete floor over a service riser inside a building under construction

Stairs & platforms

Mesh grating covers to service riser

Open mesh grating panels and support angles over a service duct, cut and clipped to suit the opening.

See the job
Galvanised steel frame with posts and rails enclosing rooftop plant and ductwork under a blue sky

Structural steel

Galvanised rooftop plant guarding

Galvanised frame and rails around rooftop plant, bolted to pads so the roof membrane stays sealed.

See the job

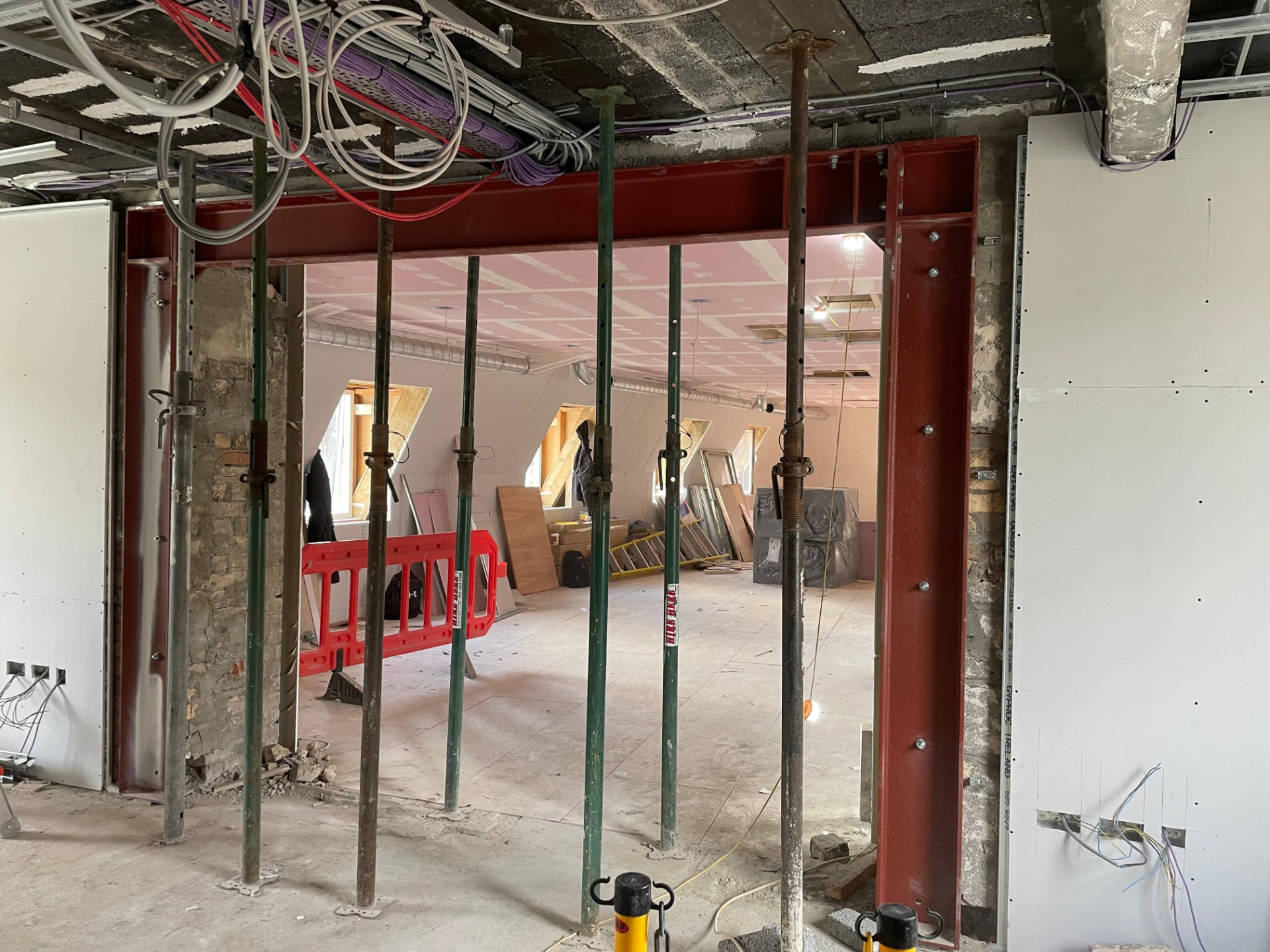

Red oxide steel beam and columns forming a wide internal opening with temporary acrow props still in place

Openings & alterations

Propped opening with beam and columns

Wide internal opening formed in a fit out, with beam and encased columns installed behind full temporary propping.

See the job
Brushed stainless steel handrails with curved returns to external granite entrance steps of an apartment building

Gates & railings

Stainless handrails to entrance steps

Brushed stainless handrails with curved ends to external entrance steps, core drilled into the stonework.

See the job

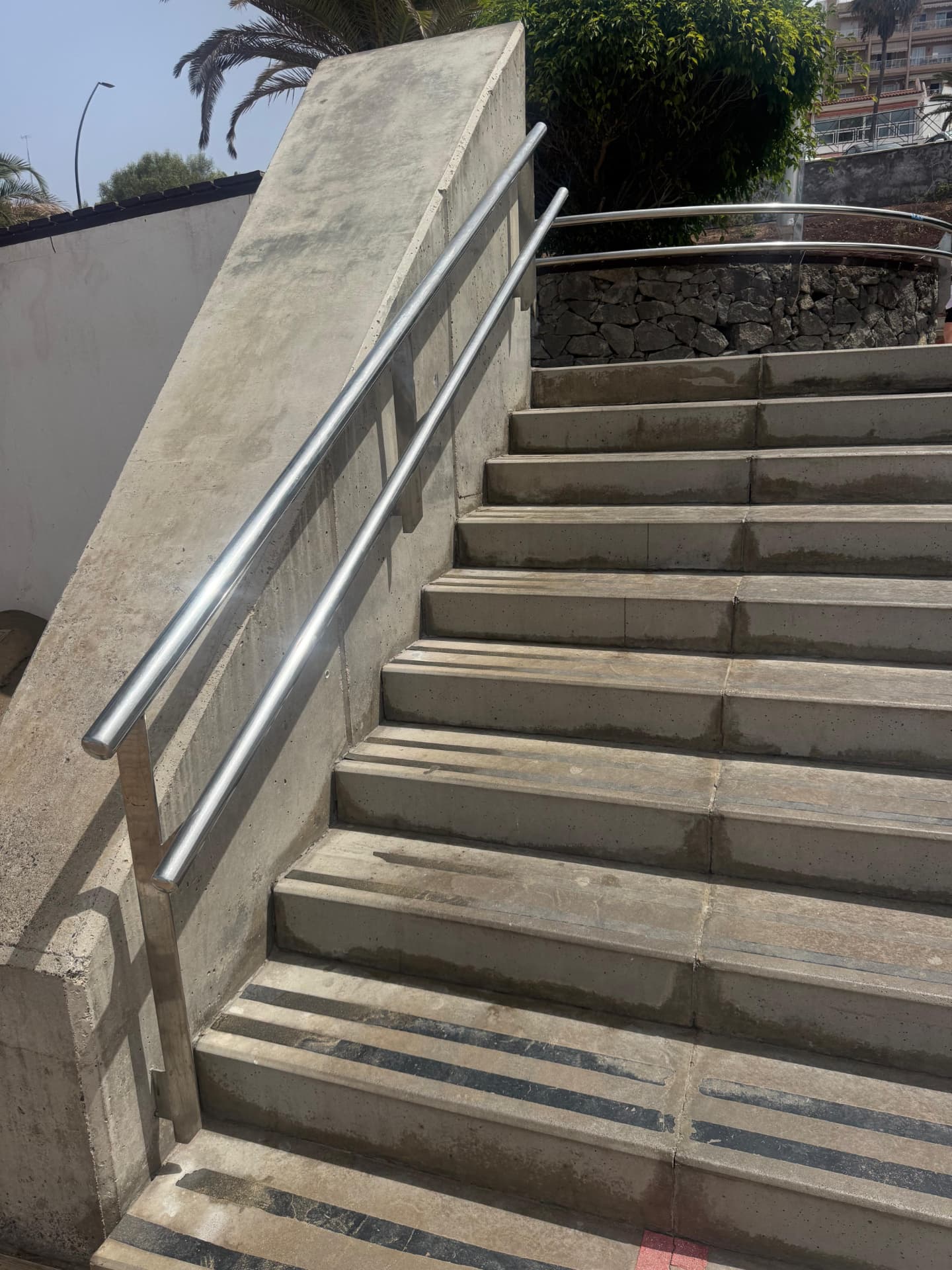

Two run stainless steel handrail fixed to a concrete wall alongside a wide external concrete staircase

Gates & railings

Stainless handrail to external stair

Two rail stainless handrail fixed to the wall of a wide external stair, following the pitch in one continuous run.

See the job
Polished stainless steel handrails to both sides of an internal access ramp in a tiled hotel lobby

Gates & railings

Stainless handrails to internal ramp

Handrails to both sides of an internal access ramp, with level extensions at the top and bottom.

See the job
Completed pale grey clad aircraft hangar with a wide open door bay and personnel door on a hardstanding

Steel sheds

Clad aircraft hangar building

Complete hangar building: frame, cladding, wide door bay and personnel door, finished and handed over.

See the job

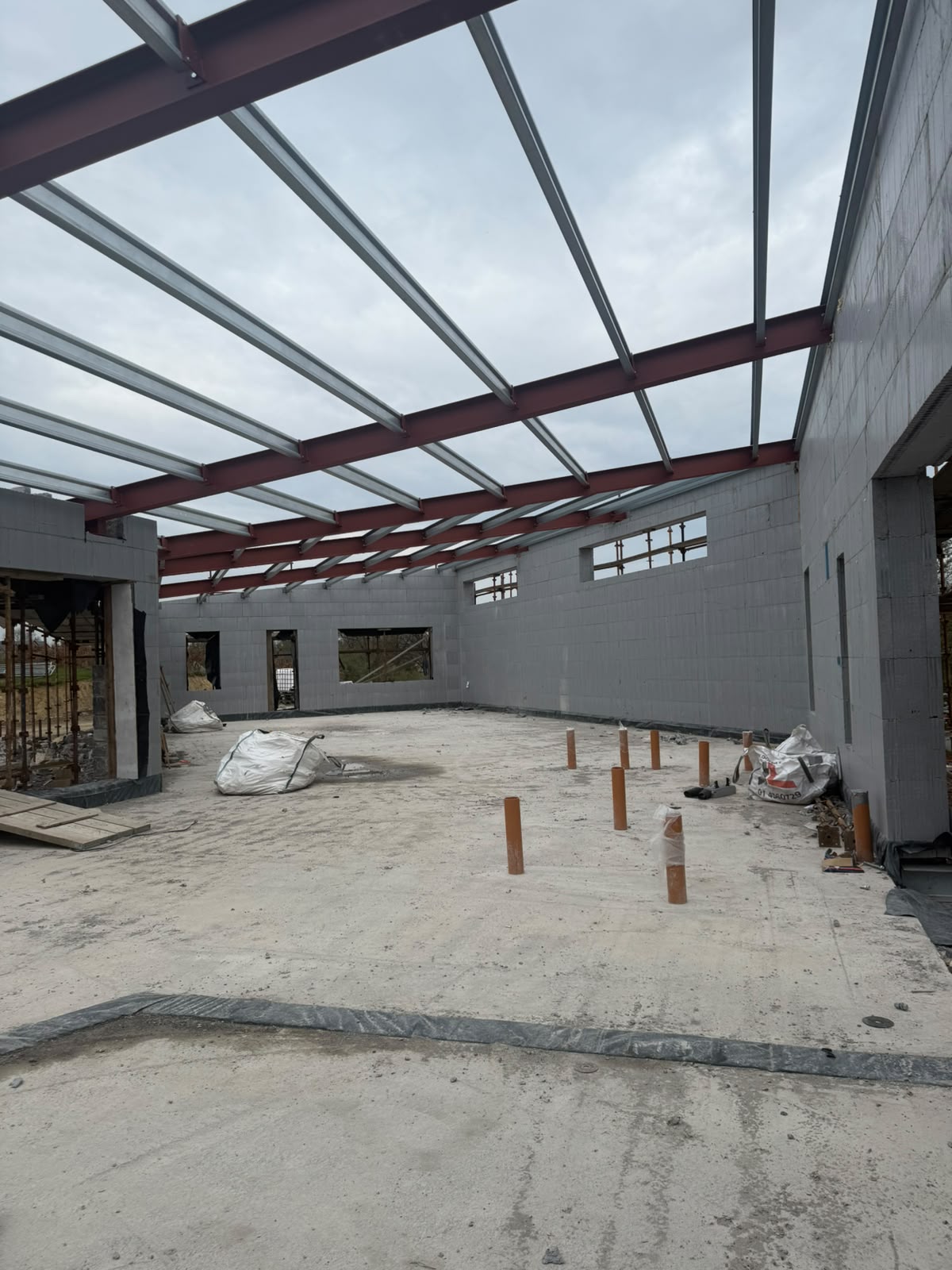

Red oxide roof beams with galvanised purlins spanning across new blockwork walls on a house under construction

Structural steel

Roof steel and purlins over blockwork

Roof beams and galvanised purlins set across new blockwork, ready for the roof build up to follow.

See the job
Rows of galvanised steel floor joists bolted to red oxide beams across blockwork walls of a new build house

Structural steel

Galvanised floor joists, new build

Galvanised joists bolted off primed beams to form a full first floor deck on a new build.

See the job
Grey painted steel portal frame extension with bracing erected alongside an existing building, with temporary props in place

Structural steel

Steel frame extension alongside existing building

Frame erected hard against a live building, propped and braced as each bay was completed.

See the job

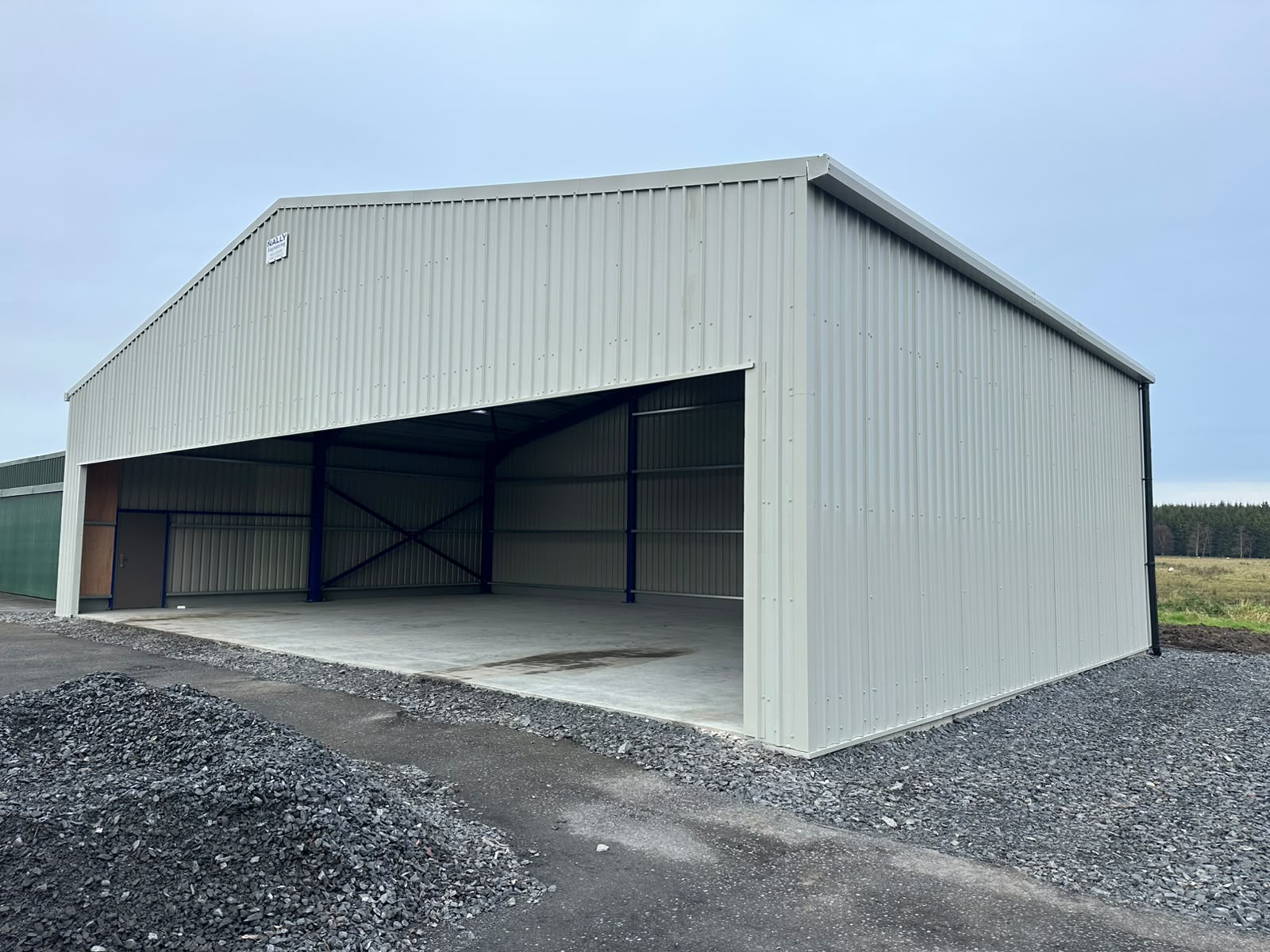

Pale grey clad steel shed with a full width open front bay, blue painted internal frame and new concrete floor

Sheds

Clad steel shed with open front bay

Portal frame shed sheeted in pale grey, with a full width open bay for machinery access and a personnel door.

See the job

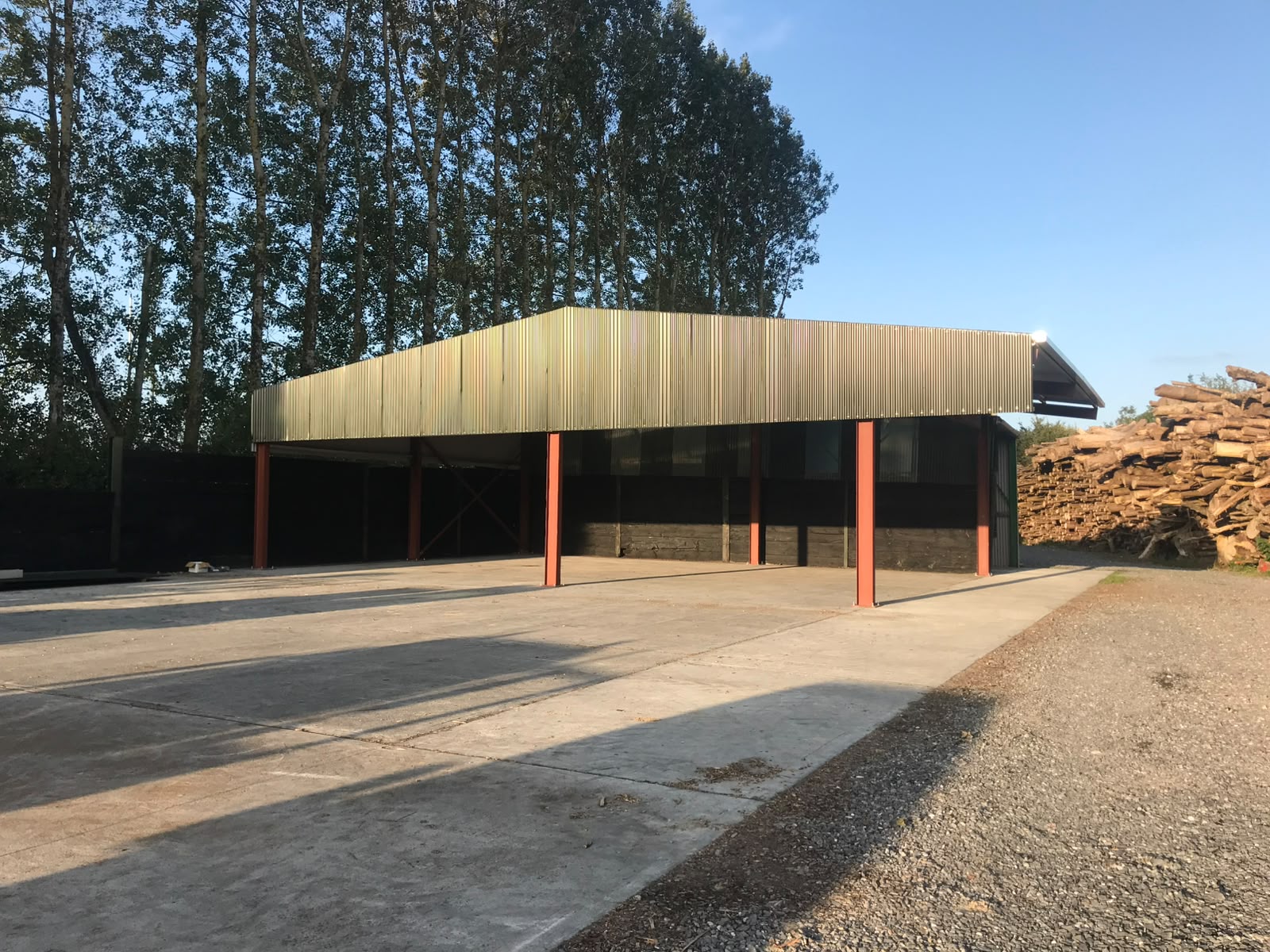

Completed agricultural lean-to canopy with red painted columns and galvanised sheeting over a concrete yard

Sheds

Agricultural lean-to canopy and frame

Open sided canopy on painted columns, giving covered storage over an existing concrete yard.

See the job

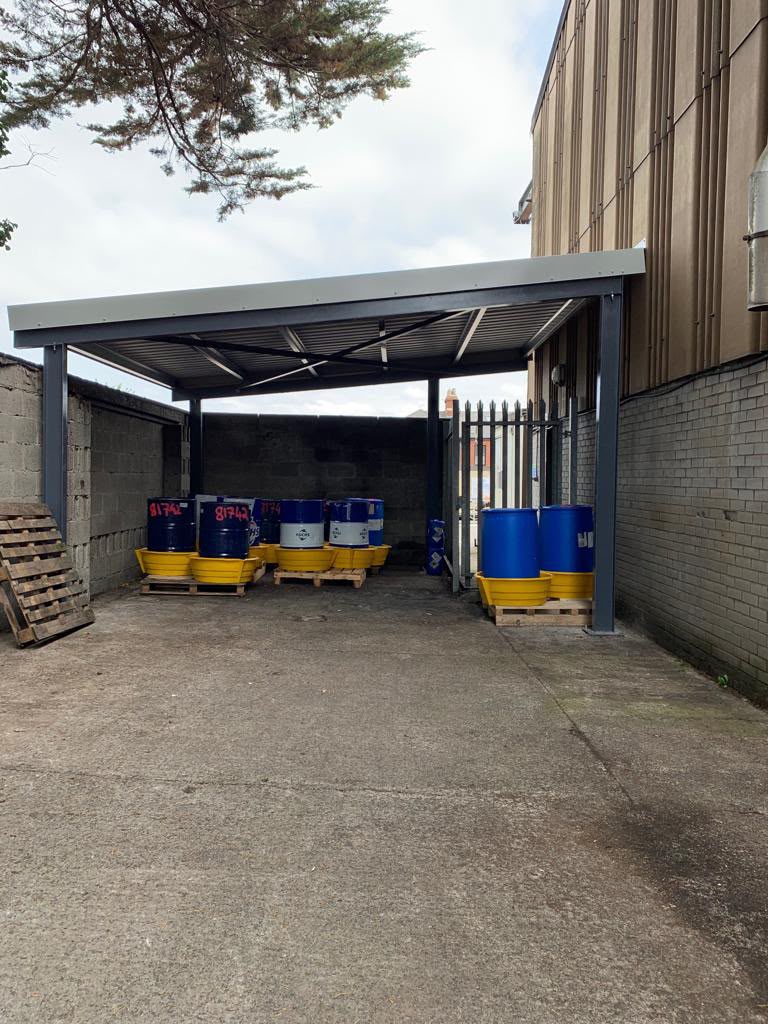

Dark grey steel canopy with bracing and translucent roof sheeting over a bunded drum storage area

Fabrication

External canopies to industrial stores

Fabricated canopies over drum storage and store entrances, keeping materials and access under cover.

See the job
White painted steel beams and columns installed through the double height area of a retail unit under fit-out

Openings & alterations

Painted beams and columns, retail unit

Beams and columns installed inside a live retail building to open up a double height area during fit-out.

See the job
Galvanised chequer plate cover panels set flush into a factory floor trench alongside plant equipment

Fabrication

Chequer plate covers to floor trench

Galvanised chequer plate panels made to fit a floor trench, sitting flush and liftable for access.

See the job

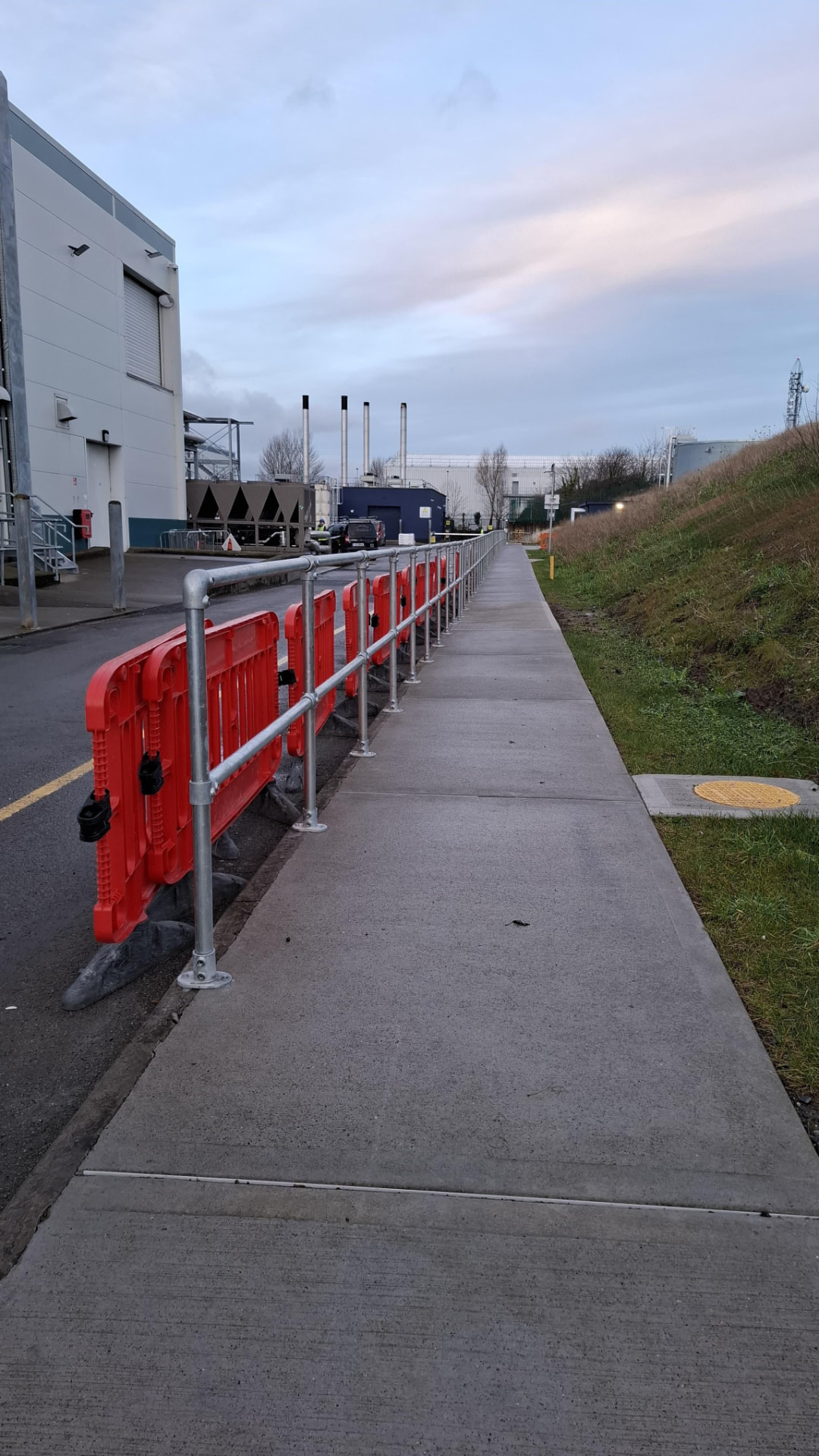

Galvanised tube guardrail running along the edge of a new concrete pedestrian walkway on an industrial site

Gates & railings

Galvanised guardrail to pedestrian walkway

Tube and fitting guardrail along a new pedestrian walkway, separating foot traffic from the site roadway.

See the job
Galvanised vertical bar palisade railings with pointed tops on a coastal sea wall beside a stepped access with handrail

Gates & railings

Galvanised palisade railings and stair handrail

Galvanised palisade railings to a new sea wall, with a matching handrail to the steps alongside.

See the job
Red oxide steel beams and a corner column forming a flat roof frame over new blockwork walls of a house extension

Structural steel

Flat roof steel frame over blockwork

Perimeter beams and a corner column forming the flat roof frame over a new extension, with a wide corner opening.

See the job
Galvanised roof access step over platform with chequer plate tread, side guarding and a self closing safety gate

Stairs & platforms

Roof access platform and safety gate

Step over platform with guarding and a self closing gate, giving safe access between roof levels.

See the job
Stainless steel bar with welded and dressed pins set out along it, resting on workshop rollers

Fabrication

Stainless fabricated bar assembly

One off stainless assembly with welded pins, profiled and dressed back in the workshop.

See the job
