Factory floor guide rails and trackway

Long runs of yellow painted steel guide rail fabricated and bolted into a working production hall.

Long yellow painted steel guide rails bolted into a factory floor running towards a loading door

About this job

Rails were made in sections that could be handled inside the building, with the joints set out so they landed away from the busiest crossing points.

Installation was worked around production, section by section, so the hall stayed in use throughout.

[CONFIRM: project details, dates and client permission to publish]

What we did

  • Set out on site
  • Rails fabricated in sections
  • Drilled and bolted to the slab
Welding & Fabrication

More photos from this job

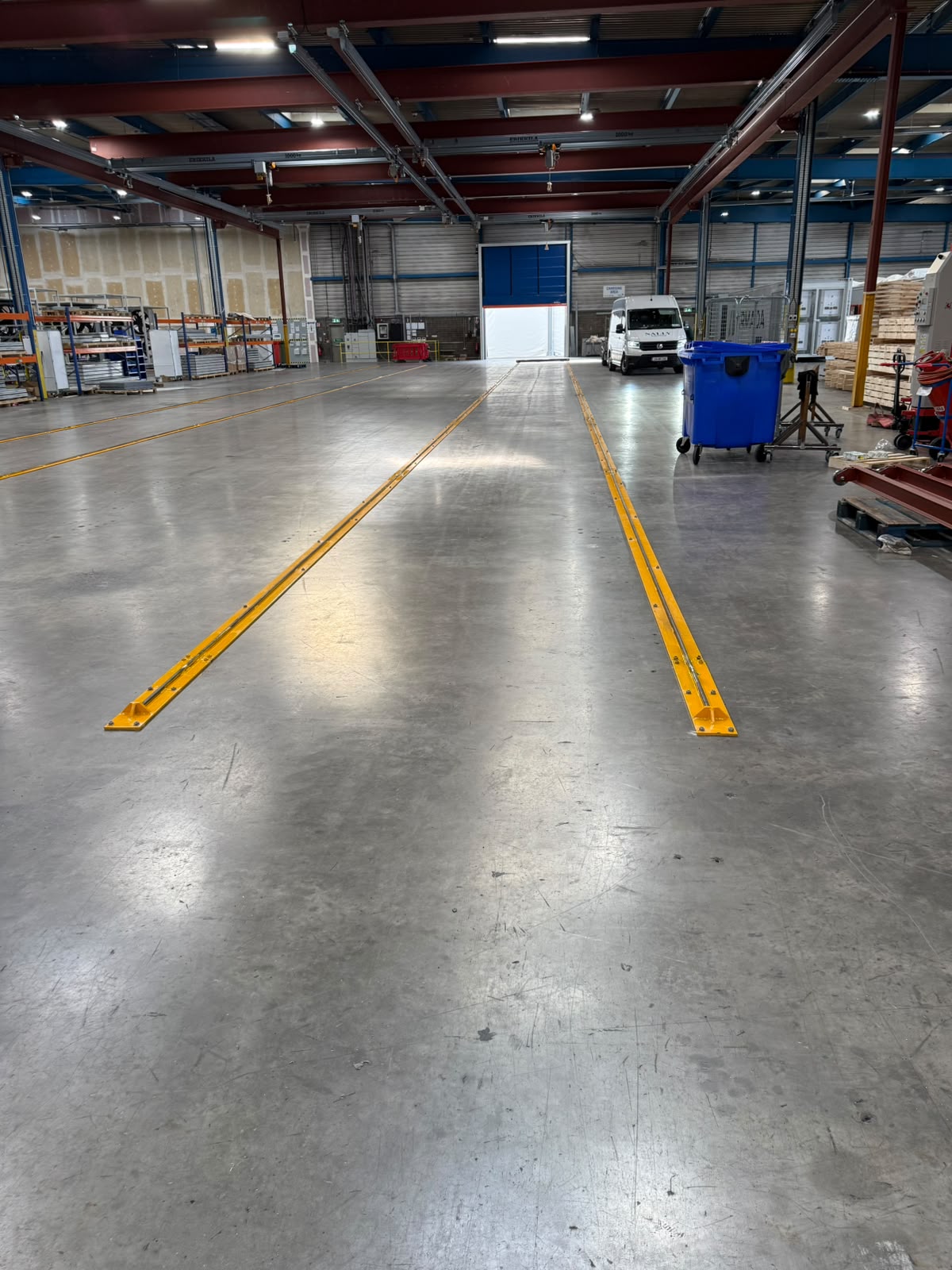

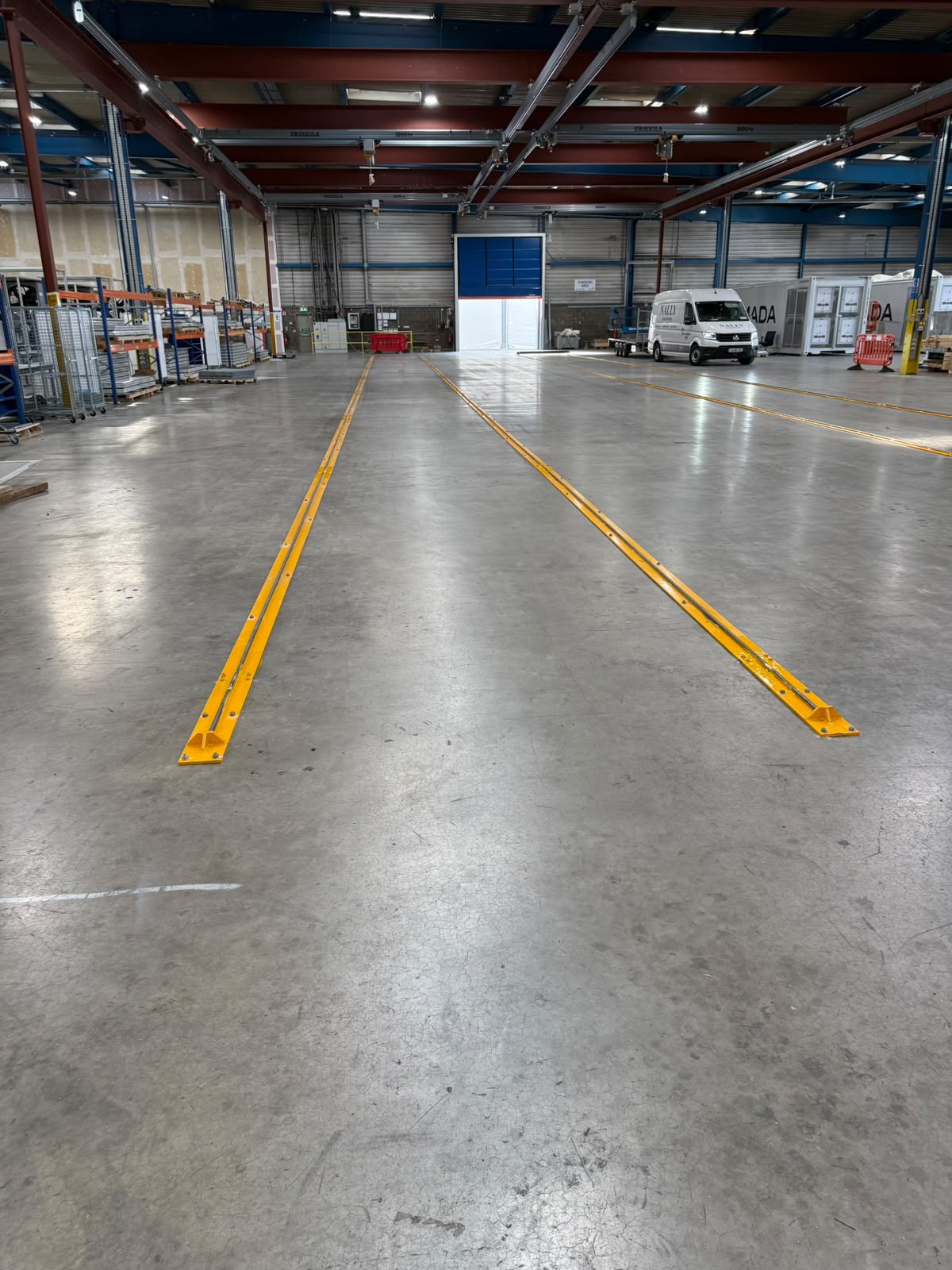

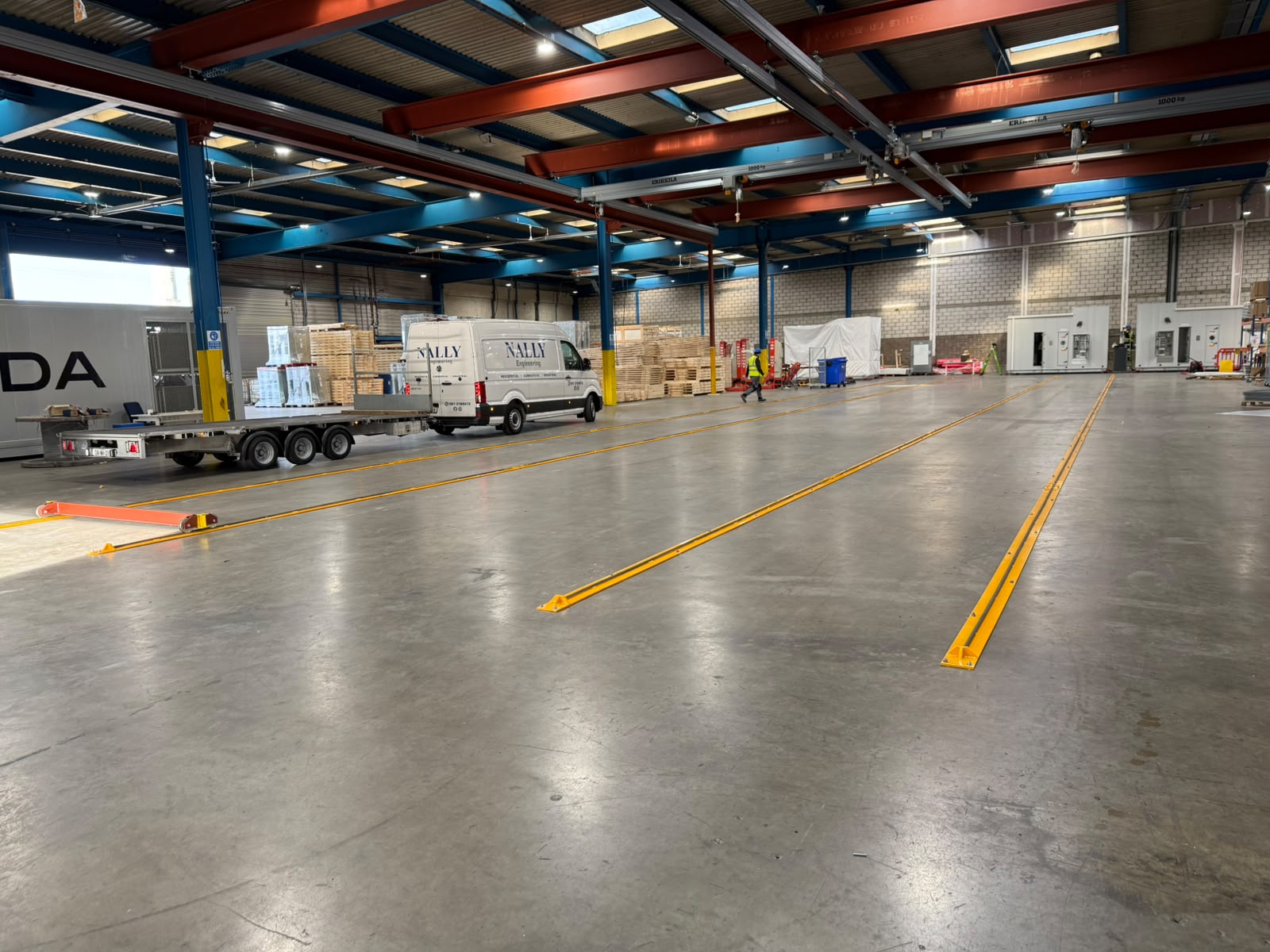

Yellow steel guide rails bolted into a factory floor running towards a blue loading doorWide view of yellow floor guide rails installed across a production hall with the Nally Engineering van alongsideTwo long runs of yellow guide rail set into a polished concrete factory floorNally Engineering van and trailer beside newly installed yellow floor rails in a large production hallParallel runs of yellow steel floor rail bolted into a polished concrete factory floor
