Goods lift shaft frame

Welded steel shaft frame built inside an existing building to take a goods lift and its guides.

Red oxide painted steel frame forming a goods lift shaft inside an existing building

About this job

The frame was made in sections that could be carried into the building and welded up in place, then lined and plumbed to the tolerances the lift installer needed.

Openings at each level were framed as part of the same job so there was nothing left to chase afterwards.

[CONFIRM: project details, dates and client permission to publish]

What we did

Site measure
Welded shaft frame
Fitted and lined in position

Welding & Fabrication

More photos from this job

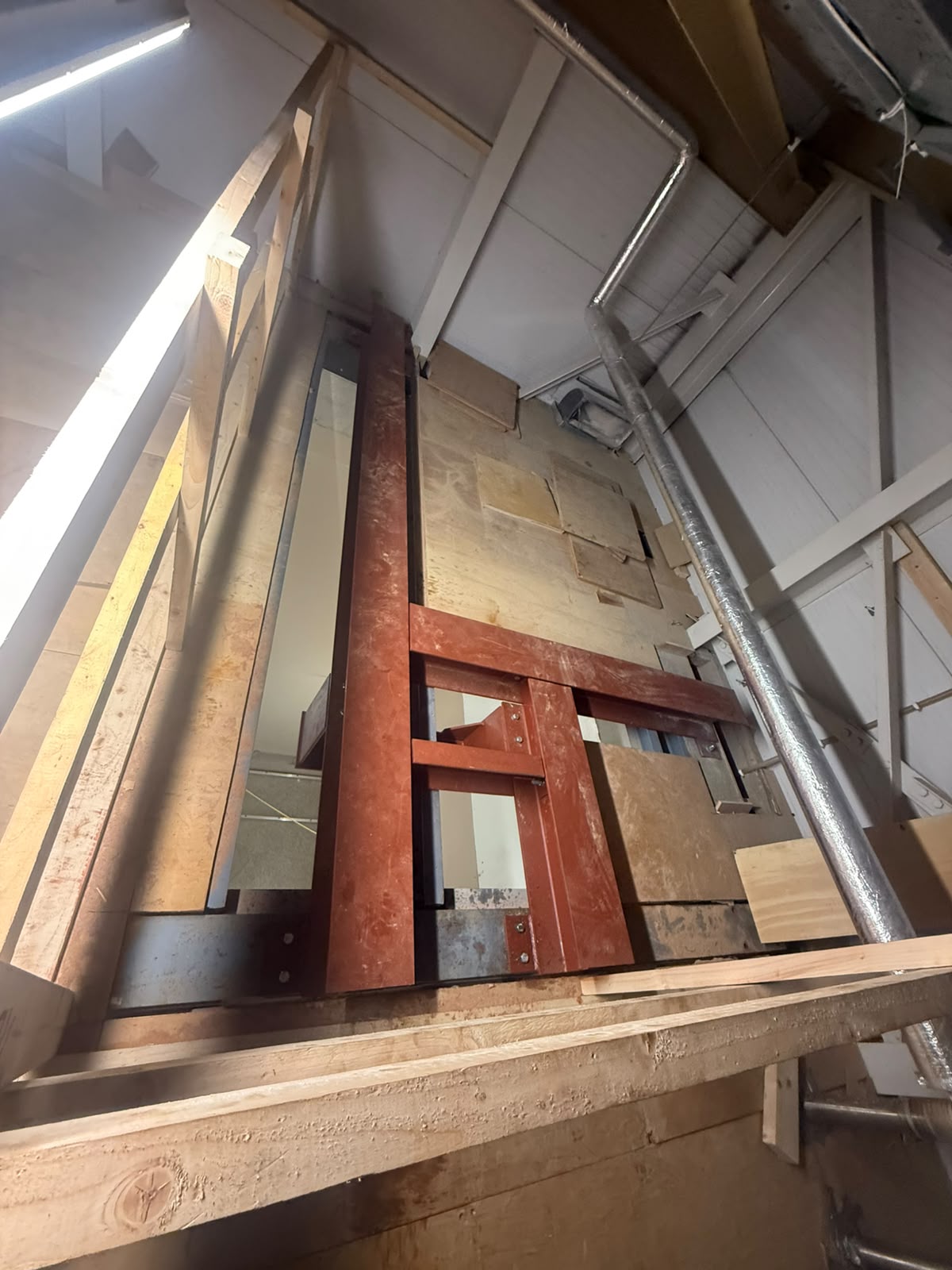

Red oxide welded steel lift shaft frame looking down through the temporary timber decking of the opening
